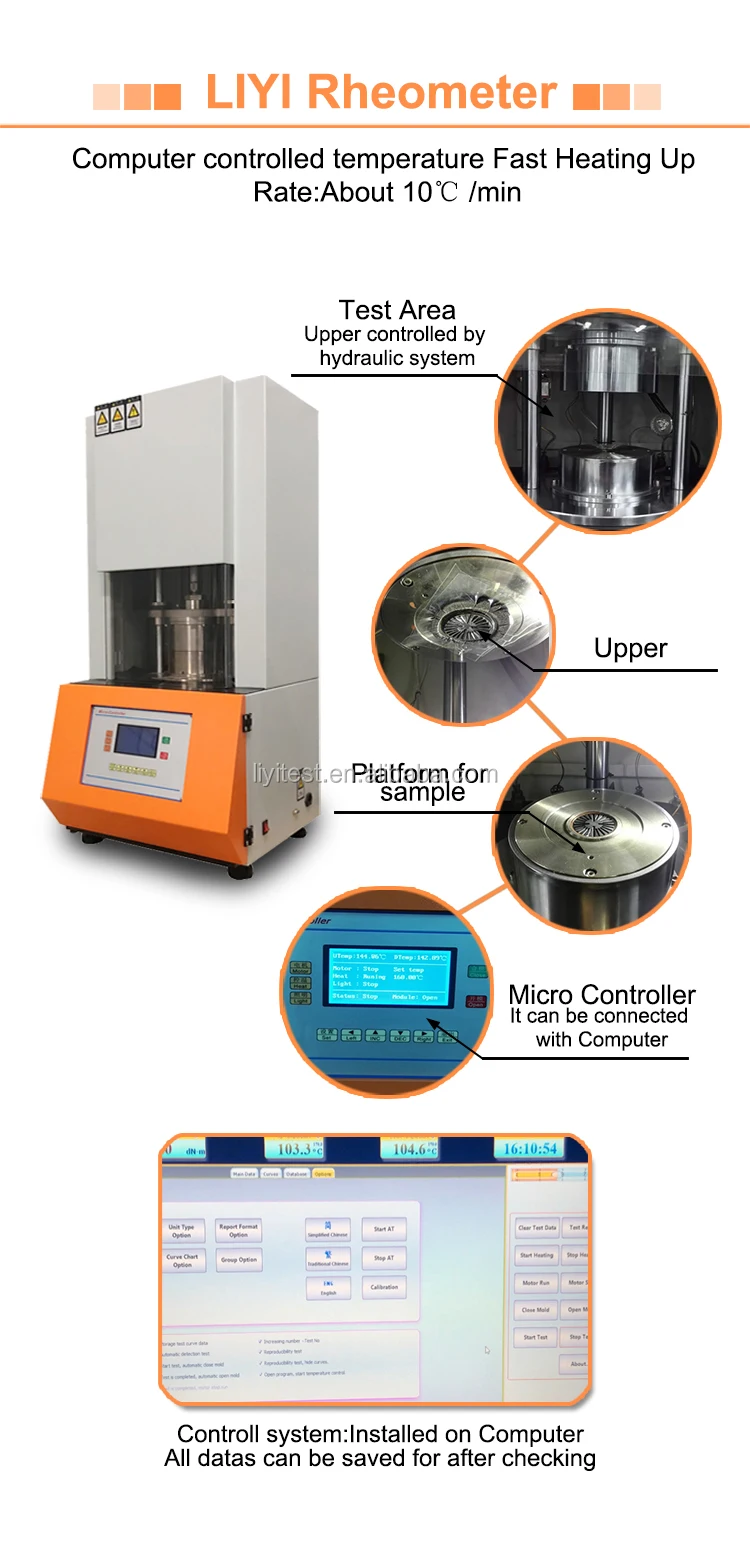

Dongguan LIYI ASTM D 2084-79 Rubber Rheometer Tester With No Rotor
The rubber no rotor rheometer is a widely used tester in rubber processing industry, rubber quality control and basic research rubber, For optimize formula of rubber provide accurate data, It can accurately measure the scorch time, rheometer time, sulfide index, the maximum and minimum torque and other parameters.
Main characteristics:
Computer controlled temperature, upper and lower mould error less than 0.2℃.
Heating speed: room temperature—200℃,about 10 min .
Good repeatability.
Features:
1. This non rotor rheometer is really confined mold cavity, and the United States Alpha (formerly Monsanto) has done. Repeatability, and test data comparable with the Alpha. At the international leading position in the same industry.
2.The non rotor rheometer development platform based on large databases, temperature control devices using the software to directly control and collection and processing. Instrument to overcome the general curing temperature of the shortcomings of using temperature controller (accuracy poor).
3. This instrument has statistics, analysis, storage and comparison functions. Humanized design, easy to operate
4. Have the function of comparison and amplification carve
5. Computer controlled,application WINDOWS series operating system platform.
Specification
| Temperature range | room temperature to 200℃ |
| Heating rate | 30degree to 180 degree less than 8 mins |
| Temperature fluctuation | ±0.3°C |
| Temperature resolution | 0.1°C |
| Torque range | 0-20N.M |
| Torque resolution | 0.001NM |
| Rotor swing angle | ±0.5℃ ,±1℃(standard) ,±2℃ |
| Swing frequency | 100r/min(1.66HZ) |
| Consumed power | 800W |
| Power | 50HZ, 220V±10% |
| Out size | 640mm×580mm×1300mm |
| Weight | 210kg |
