Digital Charpy Testing Machine Plastic Pendulum Impact Tester

Name: Digital Charpy Testing Machine Plastic Pendulum Impact Tester
Brand: Liyi
Price: 1 USD

China Digital Charpy Testing Machine Plastic Pendulum Impact Tester wholesale

Brand Name : Liyi

Certification : ISO, CE

Place of Origin : Guangdong, China

MOQ : 1 Set/Sets

Price : $1,580.00 - $3,580.00/ Set

Payment Terms : T/T

Supply Ability : 100 Set/Sets per Month

Delivery Time : 1 sets needs 15 days,>1 sets to be negotiated

Packaging Details : Standard export wooden case

Starting angle : 115°

Support span : 62 mm

Power supply : 220V 50Hz

Corner radius of striking edge : (2.0±0.5)mm

Accuracy : about 0.1%

Standard : ASTM ISO EN JS

MOQ : 1 Set

Contact Now

Liyi Charpy Izod Pendulum Impact Testing Machine

Products Description

This Impact Test is mainly used to measure the impact toughness of rigid plastic, reinforced nylon, fiberglass, ceramics, cast stone, insulation materials and other non-metallic materials. It is the ideal testing equipment in the chemical industry, scientific research institutes, universities and quality testing departments.

 Characteristics:
 1. This Impact Test Machine is a kind of intelligent digital testing machine using the microcomputer technology. It is advanced that it can automatically correct the energy loss caused by friction and windage to modify the energy chart, getting rid of the resistance effect. (The detection of the pendulum energy after specimen fracture and the correction of energy loss are finished during the impact at once)
 2. This Test Machine test results of plastic digital charpy impact testing machine are electrically displayed to make the reading more intuitive, improving the precision and accuracy of the impact machine.
 3. This Impact Test Machine otary encoder Park grating angle measurement technology is used by the instrument to display the thrusting energy, impact strength, pre-Yang angle, up angle, the average angle and the energy loss corrected automatically, with the advantages of high accuracy ,good stability and a large measure range.

Standards

ISO179-2000 "plastics - determination of impact strength of the simply supported beam with hard material
 GB/T 21189 < plastic beam and cantilever beam and tensile impact test with a pendulum impact testing machine test >
 GB/T1043-2008 "the hard plastic beam impact test method"
 JB/T8762-1998 plastic beam impact testing machine
 GB/T 18743-18743 "with thermoplastic fluid conveying pipe beam impact test method" (applicable to pipe)
 ISO180-2000 "plastics - determination of hard material cantilever beam impact strength
 GB/T1843-2008 "the hard plastic cantilever beam impact test method"
 JB/T8761-1998 plastic cantilever beam impact testing machine
 ASTM D256-2010 "test method for determination of plastic the IZOD pendulum impact strength,
 GB - T13525-1992 "plastic tensile impact test method for performance"

Product Paramenters

Impact velocity	2.9m/s; 3.8m/s
Pendulum energy	1J, 4J, 5J or 7.5J, 15J, 25J, 50J
Distance from the pendulum center to the specimen center	221mm
Pendulum tilt angle	150°
Accuracy	0.01°
Jaws bearing distance	60mm, 70mm, 95mm
Supporting blade radius	R=1mm
Impact blade angle	30°
Impact blade radius	R=2mm
Main accessaries	2J,4J and 5.5J impact weight

Detail Images

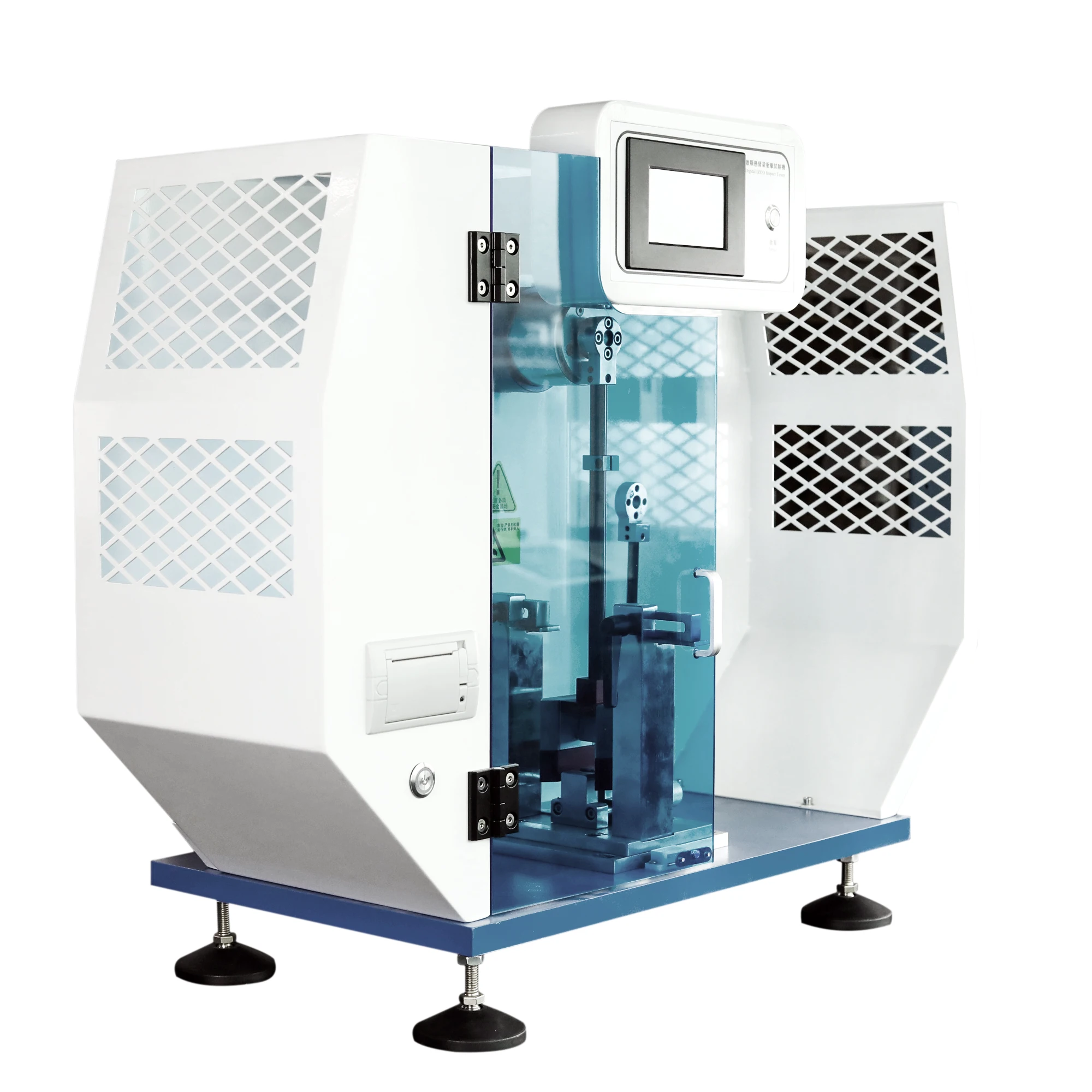

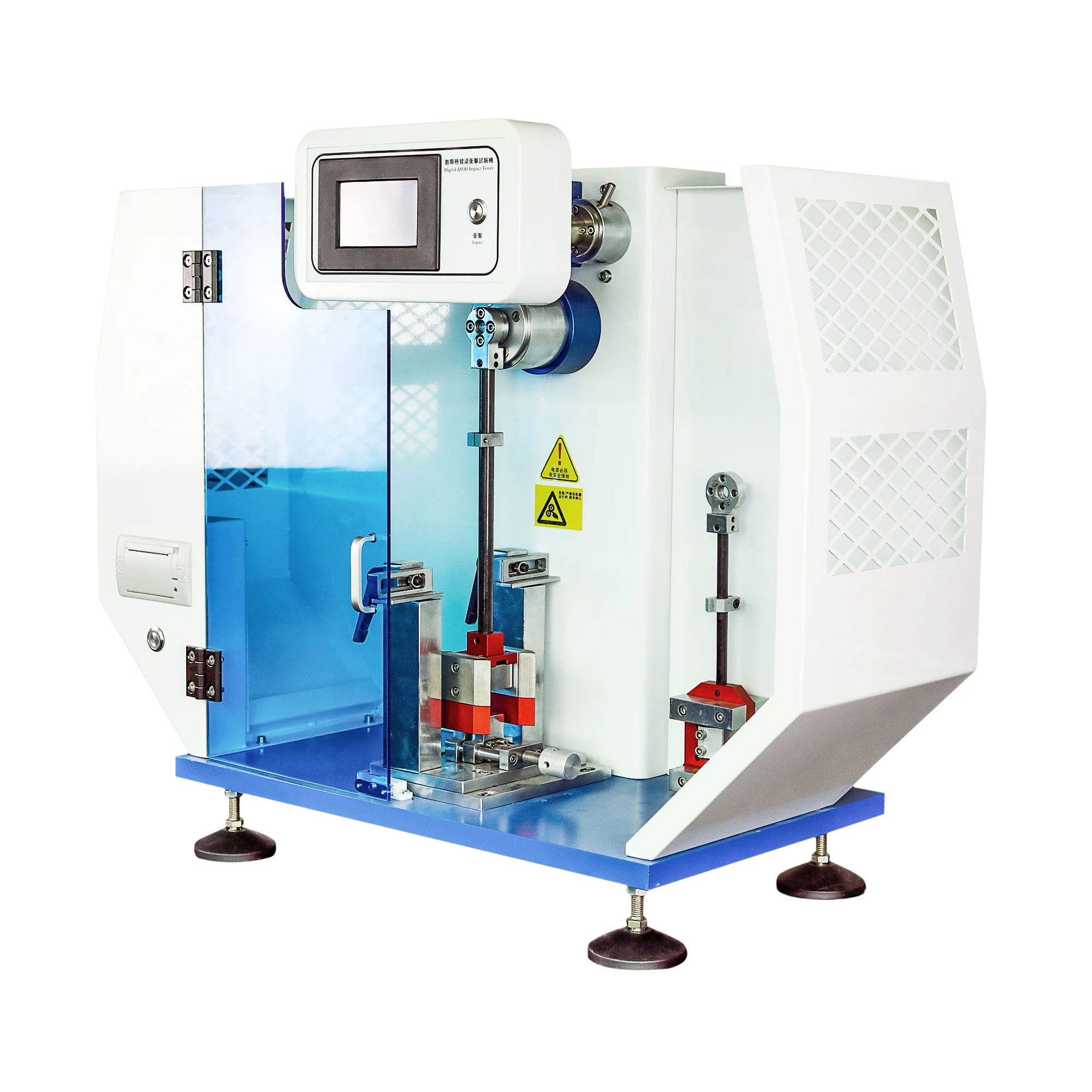

Digital Charpy Testing Machine Plastic Pendulum Impact Tester

Wanna know more about this machine? Send us an enquiry for more information

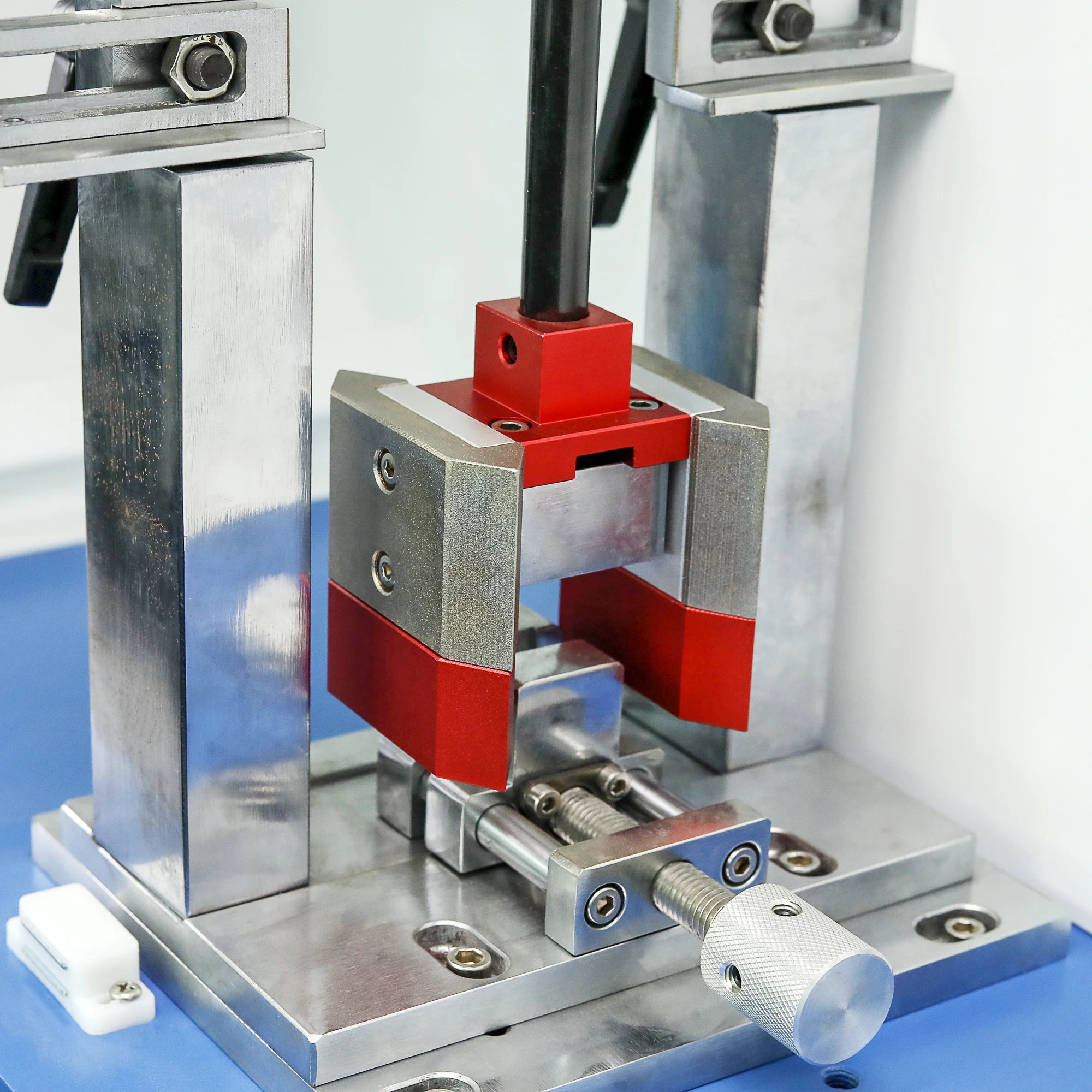

Charpy & Izod pendulum

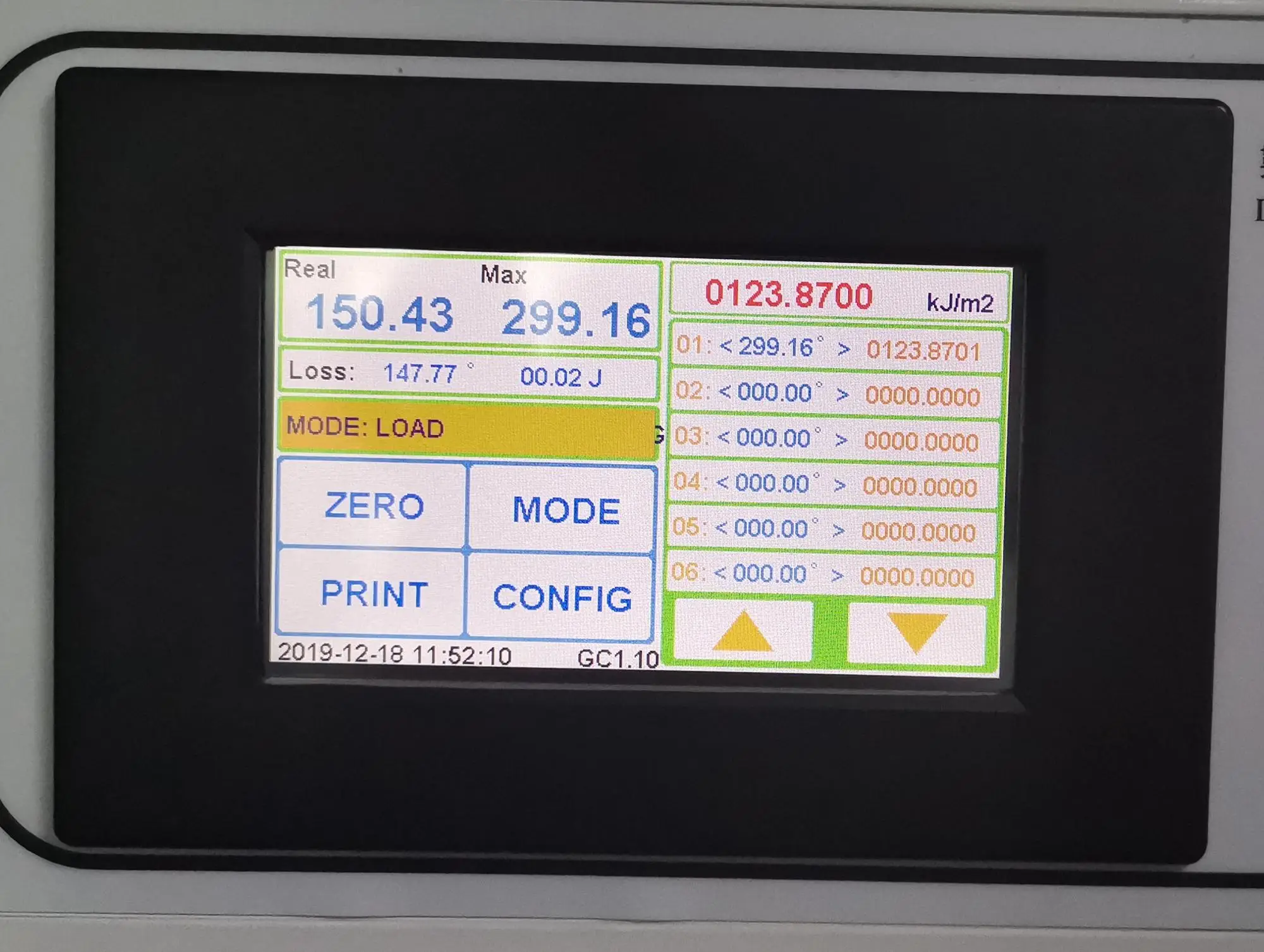

Touch screen 5.7 inches controller

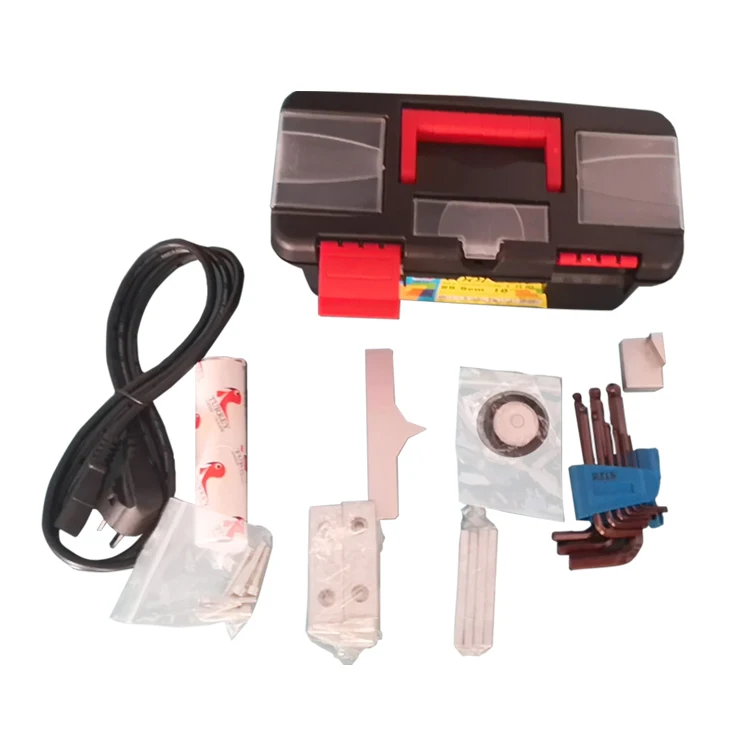

Tool Box with standard accessaries

Digital Charpy Testing Machine Plastic Pendulum Impact Tester Images
